product description The main functions of this paper tube outer rolling and expanding machine are paper tube outer rolling, paper tube inner rolling and paper tube inflation. The products are well made and have stable performance. Our company's paper tube exte
product description
The main functions of this paper tube outer rolling and expanding machine are paper tube outer rolling, paper tube inner rolling and paper tube inflation. The products are well made and have stable performance. Our company's paper tube external rolling and expanding machine adopts advanced technology - CNC stepping system, which can minimize the positioning error of the paper tube.
| Model | SM600-W Paper Tube Outer Roll Expander |
|---|---|
| Paper Tube Feeding Method | Automatic |
| Paper Tube Discharging Method | Automatic |
| Paper Tube Positioning | CNC Stepping System |
| production efficiency | 30-40pcs/min a |
| accuracy | <0.5mm |
| Maximum length of paper tube drums | 600mm |
| Minimum length of paper tube drums | 60mm |
| Diameter of paper tube | Φ30mm-Φ160mm |
| Wall thickness of paper tube | 0.8-1 mm |
| gas consumption | 0.5Mpa |
| rated power | 2.8KW |
| Machine voltage | 380V(3P) |
| Machine size （mm） | 1780×930×1850 |
| Machine weight | 880kg |

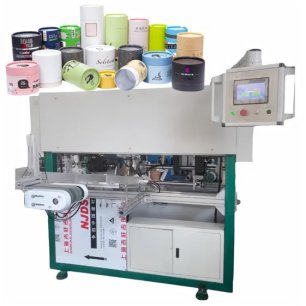

Design and configuration details of the SM600-W Inner Curling Machine B.
Features
1、This paper tube crimping machine automatically rolls the paper tube horizontally into the machine and runs
smoothly. The crimping feeder adopts mechanical cam to ensure the flexible feeding of moulds under high speed
Machine configuration, optional units, and pricing are confirmed per inquiry. Contact Barclay Liu at +86 131 7320 5213 with your paper stock grade, parent roll dimensions, target slit width, and downstream machine list, and the Senmei engineering team will respond with a configuration and lead time.
Senmei ships standard slitter and rewinder configurations from the Jiaozhou factory; lead time and commissioning scope confirmed per inquiry.
| HS Code | 8441.80 (other machinery for making up paper pulp, paper or paperboard) |
|---|---|
| Minimum order quantity (MOQ) | 1 unit |
| Lead time | 30–60 working days after deposit (confirmed per inquiry) |
| Payment terms | T/T 30% deposit + 70% balance after factory acceptance test; L/C at sight for large orders |
| Incoterms | FOB Qingdao (default) · CIF · CFR · DAP (door-to-door) |
| Packaging | Fumigation-free wooden case, anti-rust film, desiccant, foam-padded impact points; one standard machine per 20'GP |
| Loading port | Qingdao Port, Shandong Province, China |
| Country of origin | China |
| Certifications | CE marking (per shipment), ISO 9001 (manufacturer) |
| Warranty | 12 months limited on main components; wear parts excluded |
| Spare parts availability | 5 years from shipment date |
| Installation & training | One-for-one on-site engineer dispatch (quoted separately); remote video support included free first year |
| Documentation | Commercial invoice, packing list, certificate of origin (Form A / E / F), CE declaration, fumigation certificate |
For accurate FOB pricing, CIF quote to your destination port, and door-to-door delivery to your facility, contact Senmei with your destination country and tube specifications. Reply within 24 hours on business days via WhatsApp or email.
Send Senmei your product specifications and target output. The engineering team will come back with a configuration proposal.
